Description

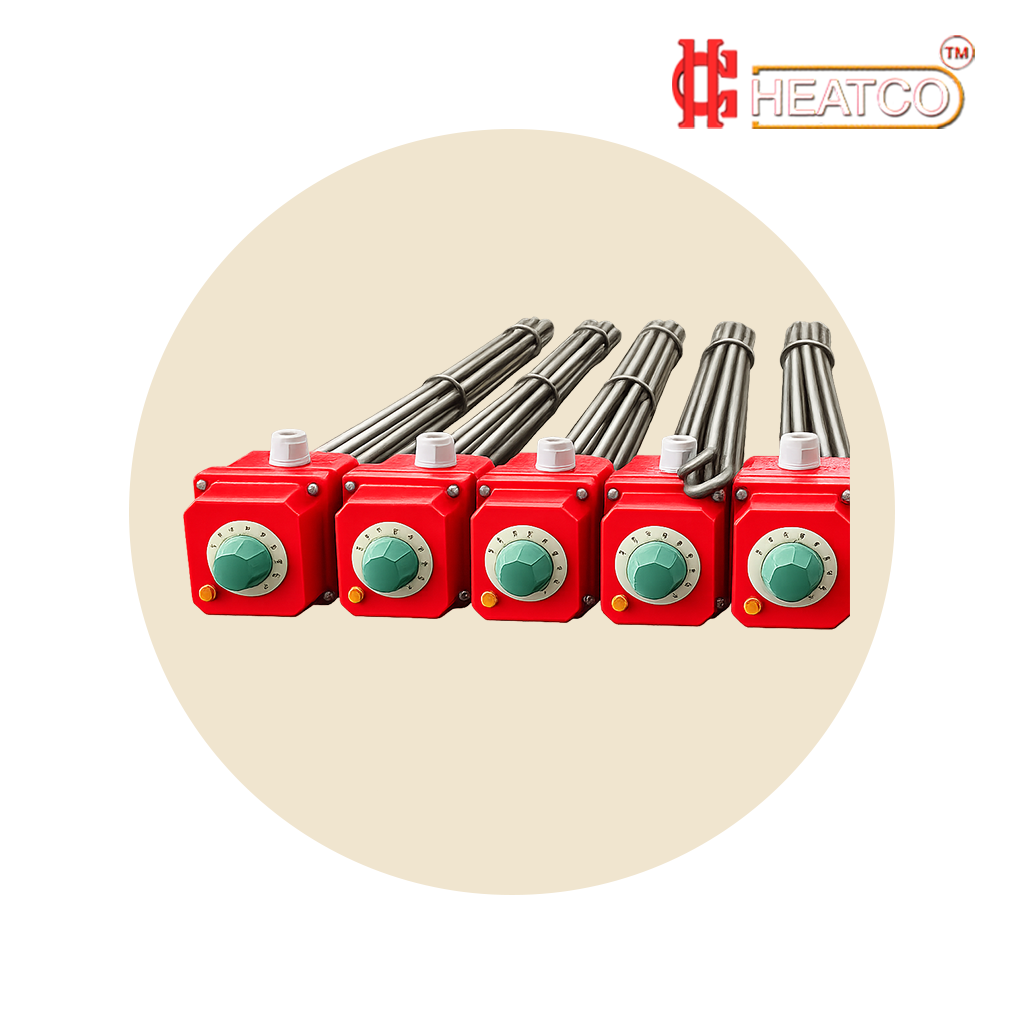

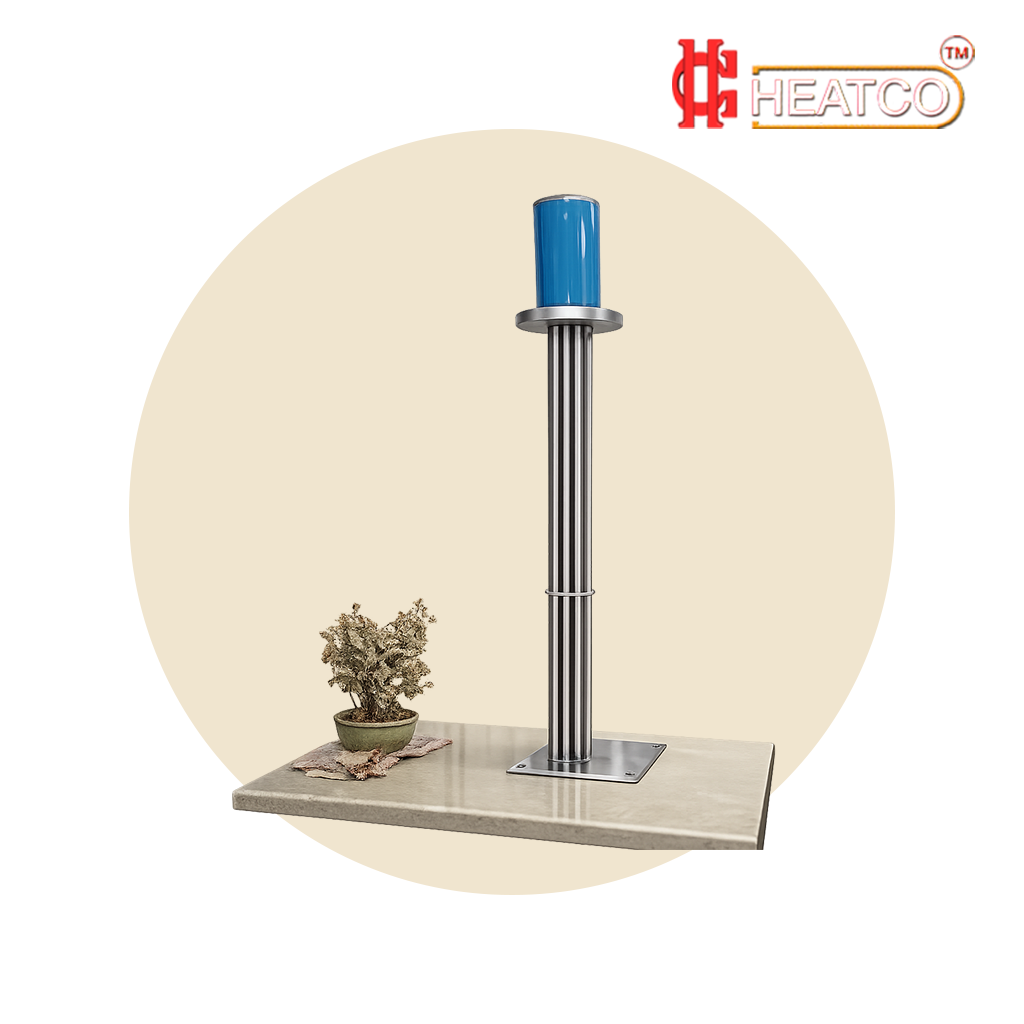

Ideal for generating steam and heating gases and liquids in pressure vessels and tanks, flanged immersion heaters are hairpin-bent tubular elements welded or brazed into a flange and provided with electrical enclosures. Heatco flanged immersion heaters are available in a wide selection of flange sizes and with a variety of electrical enclosures.
Application Guidelines :
U Length: Up to 120″
Power ratings: Up to 400 kW
Flange material: Brass, Steel, or SS
Sheath material: Cu, Steel, SS, or Incoloy.Industrial immersion heaters come in a standard set of basic configurations:
Application Guidelines :
U Length: Up to 120″
Power ratings: Up to 400 kW
Flange material: Brass, Steel, or SS
Sheath material: Cu, Steel, SS, or Incoloy.Industrial immersion heaters come in a standard set of basic configurations:
– Over the side – even heating of fluids or freeze protection
– Flange – for boilers and fluid tanks
– Pipe insert or bayonet – indirect heat to viscous materials such as those found in food manufacturing
– Circulation/in-line – fast-acting, low-wattage applications such as engine preheating

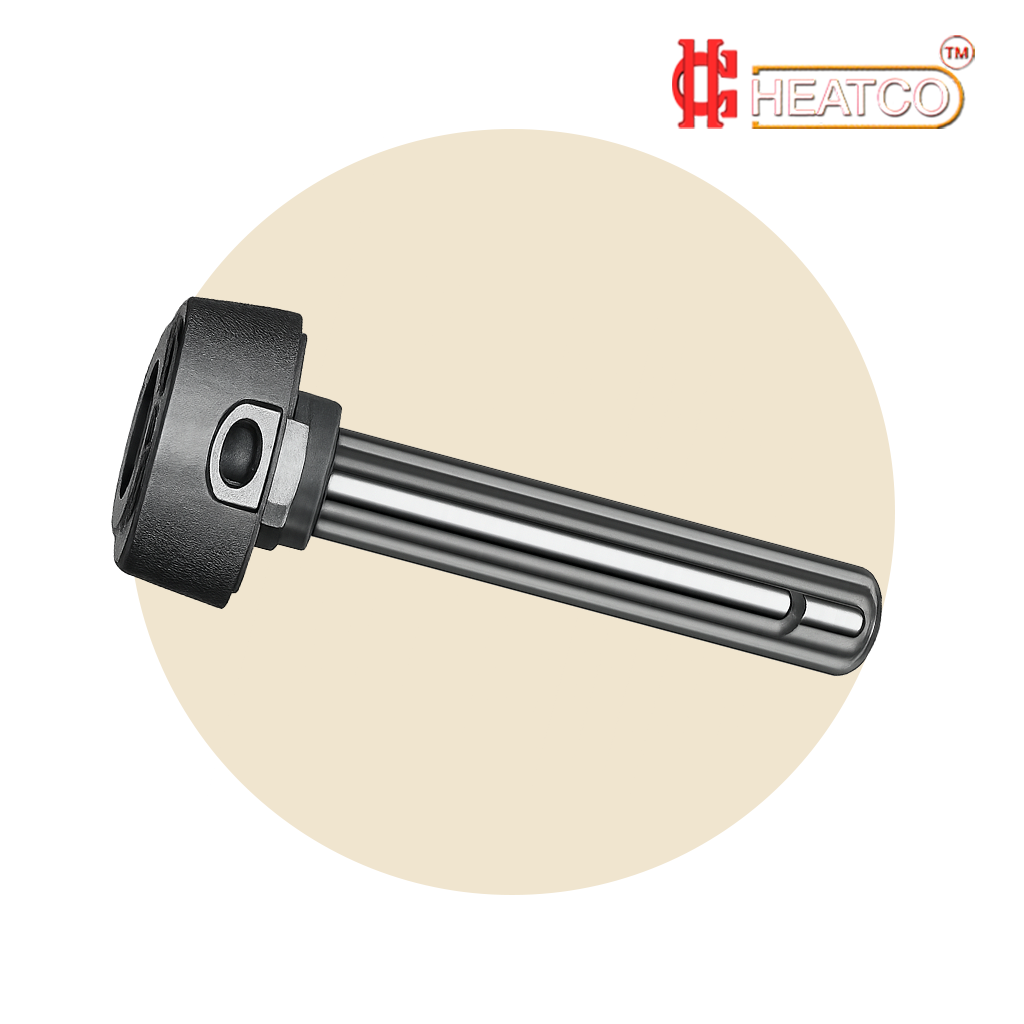

– Screw plug – fluids such as in rinse tanks, chemical baths and caustics Heating elements are also manufactured in a flat tubular configuration or a round tubular design.
– Flange – for boilers and fluid tanks
– Pipe insert or bayonet – indirect heat to viscous materials such as those found in food manufacturing
– Circulation/in-line – fast-acting, low-wattage applications such as engine preheating
– Screw plug – fluids such as in rinse tanks, chemical baths and caustics Heating elements are also manufactured in a flat tubular configuration or a round tubular design.
