Description

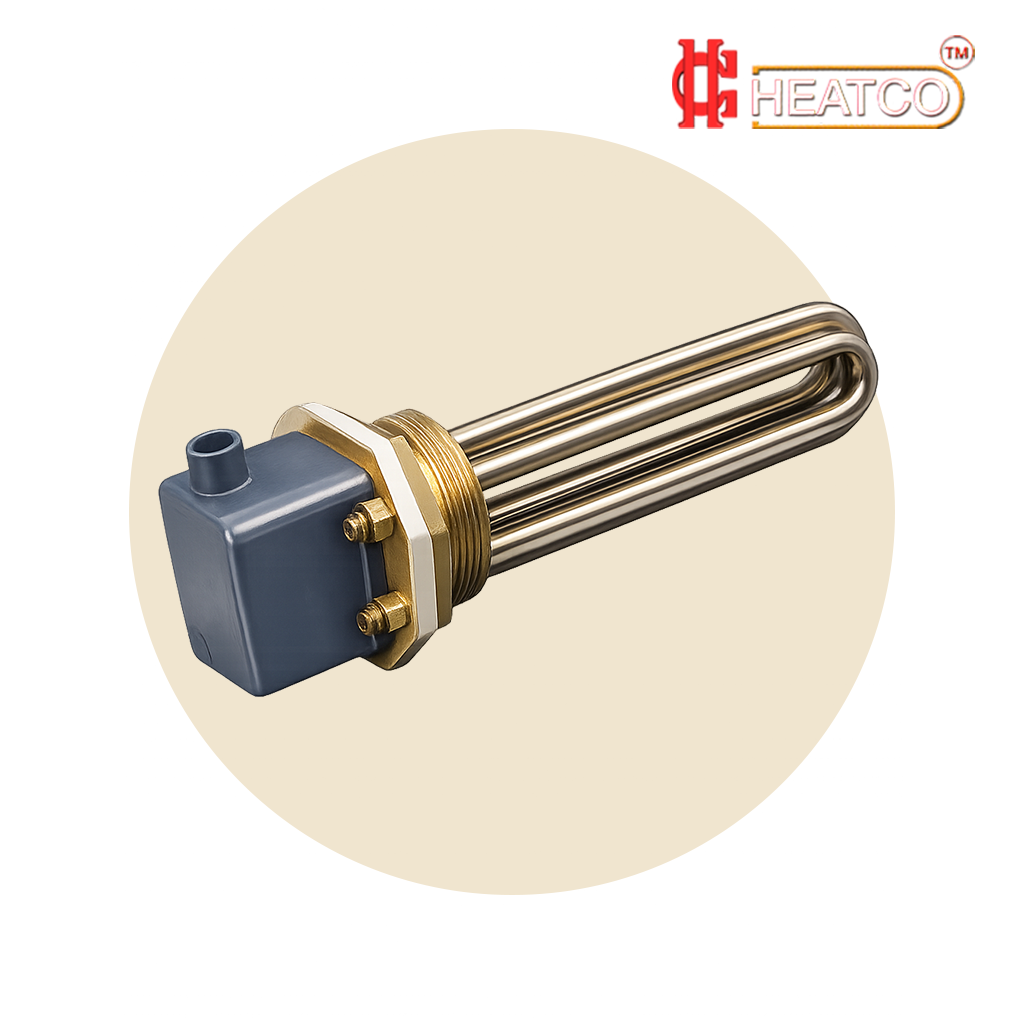

HEATCO Industrial Water Immersion Heaters are made of nickel plated copper tubing brazed to brass flanges, and are provided with terminal covers for protection of terminals.
Applications : hot water baths, tanks, boilers, etc.
| Type | Wattage | Voltage | Immersion length (mm) |
No. of tubes | Flange (BSPP) |
| HC/1/9 | 1000 | 230 | 218 | 1 | 1¼ |
| HC/2/9 | 2000 | 230 | 218 | 2 | 1¼ |
| HC/3/11 | 3000 | 230 | 278 | 2 | 1¼ |
| HC/3/9 | 3000 | 230/400 | 218 | 3 | 1½ |
| HC/4/10 | 4000 | 230/400 | 258 | 3 | 2″ |
| HC/5/13 | 5000 | 230/400 | 318 | 3 | 2″ |
| HC/6/15 | 6000 | 230/400 | 378 | 3 | 2″ |
