Description

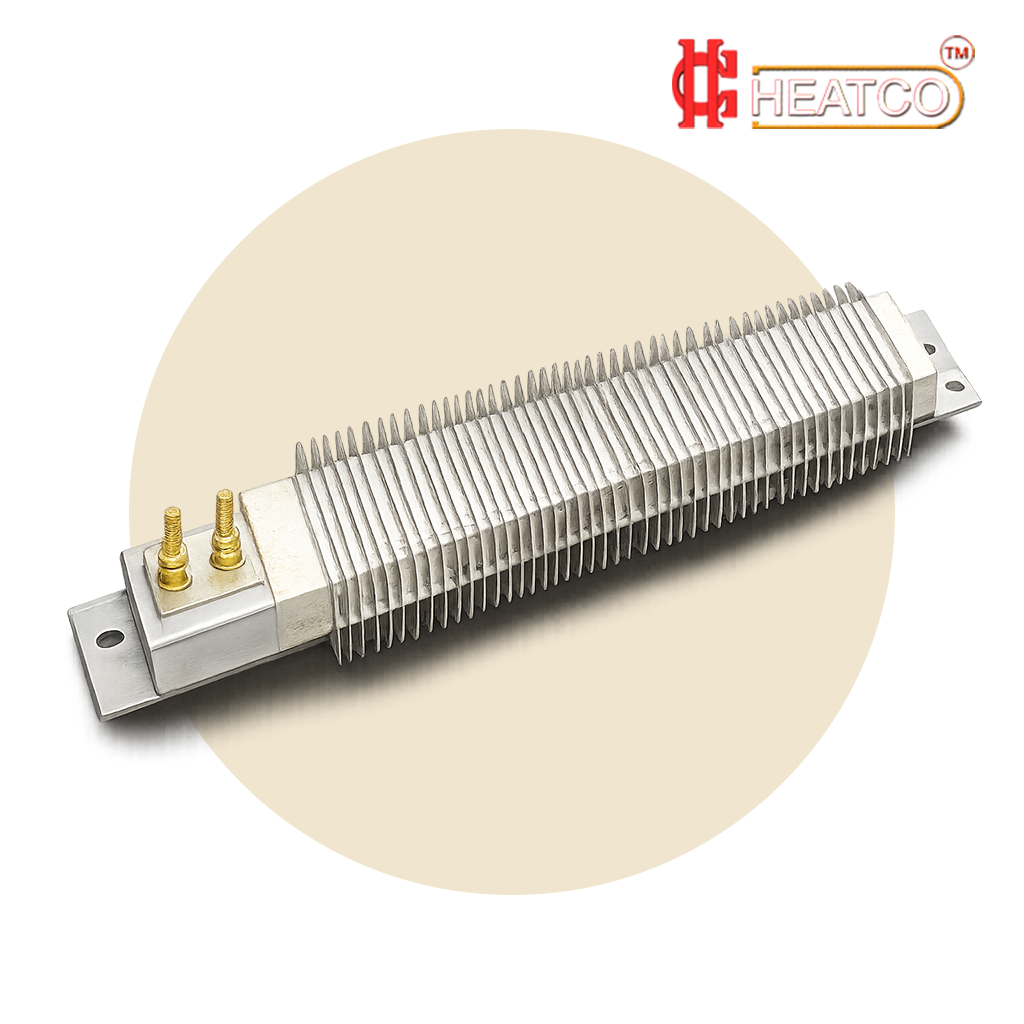

HEATCO Refractory Charged Air and Finned Heaters are made from galvanised plated, mild steel. These are designed for horizontal operation and fitted with finns for better and more uniform heat dissipation.
Applications : heating chambers, convectors.
| Type | Wattage | Voltage | Clamping lip at either end (mm) |
Overall size (mm) |
Connections |
| RCFH/13 | 750 | 230 | 25 | 330 | |
| RCFH/15 | 1000 | 230 | 25 | 381 | Brass bolts |
| RCFH/17 | 1500 | 230 | 25 | 432 | with double |
| RCFH/23 | 2000 | 230 | 25 | 584 | nuts and |
| RCFH/29 | 2500 | 230 | 32 | 737 | washers on |
| RCFH/36 | 3000 | 230 | 32 | 914 | refactory |
| RCFH/40 | 3500 | 230 | 32 | 1035 | block |
| RCFH/40 | 4000 | 230 | 32 | 1035 |
